labratory gas fume chamber

Test Principle

Textile samples and control samples are placed in the gas smoke at the same time until the color of the control sample changes to the color of the fading standard. Use grey grey card to assess the discoloration of sample.

If the sample is not discoloured after onw test period, the number of specified test times can be continued or to the required test cycles for samples to reach the specified color change.

Technical Paramters

1. Rotation speed: approximately 2R/MIN

2. Test chamber: SUS material

3. Sample size: 100mmX40mm

4, Test  temperature: 60 ℃ or less

5. Control mode: PLC control

6. Combustion gases:pure chemicalbutane gas or urban artificial gas

7. Volume: 62X70X82mm

8. Weight: 75KG

9. Power supply: AC 220V 50HZ 3A

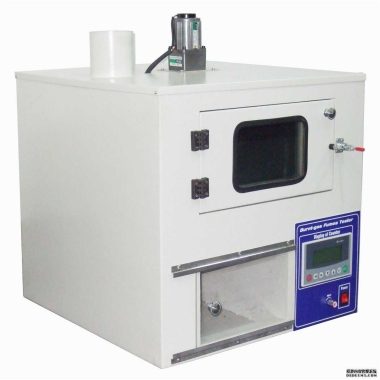

Gas Fume Chamber

Gas fume chamber is designed to test the color fastness of fabric exposed to nitrogen oxide produced by gas combustion. The tester Includes test chamber, combustion chamber, control chamber, observation door, control panel, timer, temperature control meter, air valve switch, fan and smoke exhaust device.

Test Standards

ISO 105-G02、AATCC 23, BS 1006:1990-G02, GB/T 11040
